Safety at work is a priority across the Europe. For protection of personnel against falling off of buildings at high-rise building work there are certified security nets. They meet the relevant standards (EN1263-1)

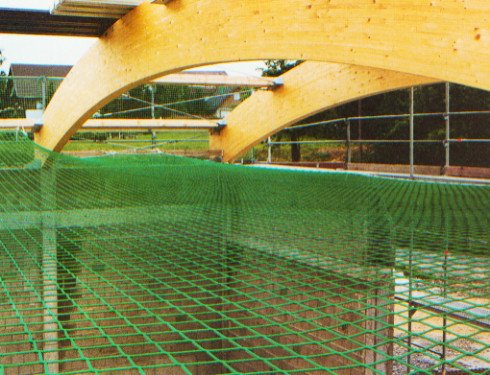

S System – safety netting with a with peripheral rope for horizontal usage
T system – safety netting in consoles for horizontal usage

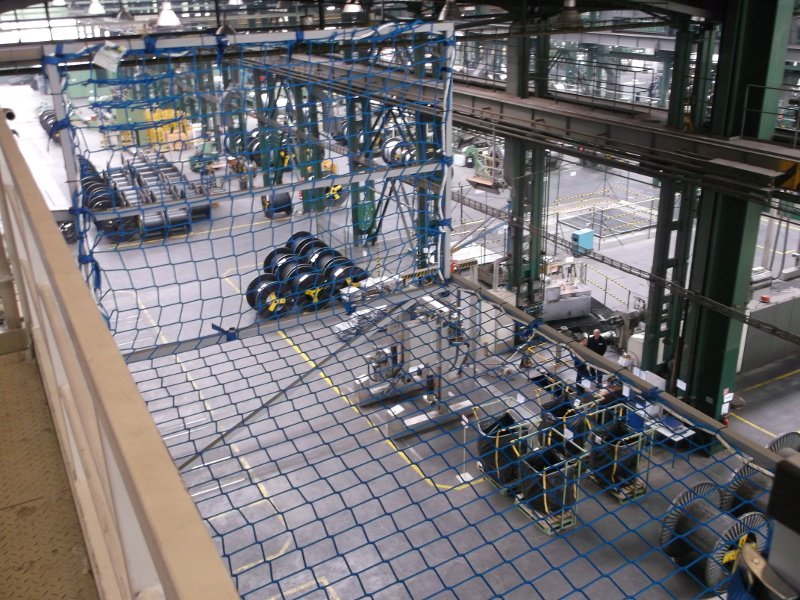

U system – safety netting in frameworks for vertical usage
V system – safety netting with peripheral rope for hanging
S System – safety netting with a with peripheral rope for horizontal usage
T system – safety netting in consoles for horizontal usage
U system – safety netting in frameworks for vertical usage
V system – safety netting with peripheral rope for hanging
| Square stitch arrangement – according to EN 1263-1 S-type standards | ||
|---|---|---|
| Atypical measurement | ||
| Number | stitch | colour |
| 1903-045-01 | 45x45 | green |
| 1903-045-02 | 45x45 | white |
| 1903-045-04 | 45x45 | blue |
| 1903-045-07 | 45x45 | red |
| 1903-060-01 | 60x60 | green |
| 1903-060-04 | 60x60 | blue |
| 1903-100-01 | 100x100 | green |
| 1903-100-02 | 100x100 | white |
| 1903-100-03 | 100x100 | orange |
| 1903-100-04 | 100x100 | blue |
| 1903-100-06 | 100x100 | black |
| 1903-100-07 | 100x100 | red |
PP Ø5mm, rope around the whole circumference Ø12mm, knotless
GS 07100011 certificate for 45x45mm stitch
GS 07100012 certificate for 60x60mm stitch
GS 07100009 certificate for 100x100mm stitch
| Standard measurement | ||
| Number | Rozmer | colour |
| 19040-100 | 5x10m | blue,green |
| 19041-100 | 6x10m | blue,green |
| 19042-100 | 10x10m | blue,green |
| 19043-100 | 7,5x15m | blue,green |
PP Ø4,75mm, rope around the whole circumference Ø12mm, knotless, stitch 100x100mm GS 7100004 certificate
| Diamond stitch arrangement – according to EN 1263-1 S-type standard | ||
|---|---|---|
| Atypical measurement | ||
| Number | stitch | colour |
| 1803-100 | 100x100 | green |
| 1803-060 | 60x60 | green |
PP Ø5mm, rope around the whole circumference Ø12mm, knotless
GS 05100007 certificate for 100x100mm stitch
GS 06100001 certificate for 60x60mm stitch
| Standard measurements | ||
| Number | size | colour |
| 18030-100 | 5x10m | green |
| 18030-100 | 6x10m | green |
| 18030-100 | 10x10m | green |
| 18030-100 | 7,5x15m | green |
| 18030-100 | 8x25,5m | green |
| 18030-100 | 12,5x20,5m | green |
| 18030-100 | 12,5x25,5m | green |
PP Ø5mm, rope around the whole circumference Ø12mm, knotless
GS 05100007 certificate for 100x100mm stitch
Safety netting can be supplemented with monofilament netting or PE cover tarp to avoid small objects or pieces of building material. When anchoring the netting, the necessary rules need to be followed - the distance of the anchor points not more than 2.5m apart - each element must be set at least to 6kN (ropes, snap hooks, stitches, straps, ratchet spanners, etc.).
There are also used so-called trafficable tarps (as a replacement for the work platform). This netting must have a 45x45mm stitch size and a rope with 12mm - 30kN diameter. Traverse tension straps are installed 2 x 2 m apart.
